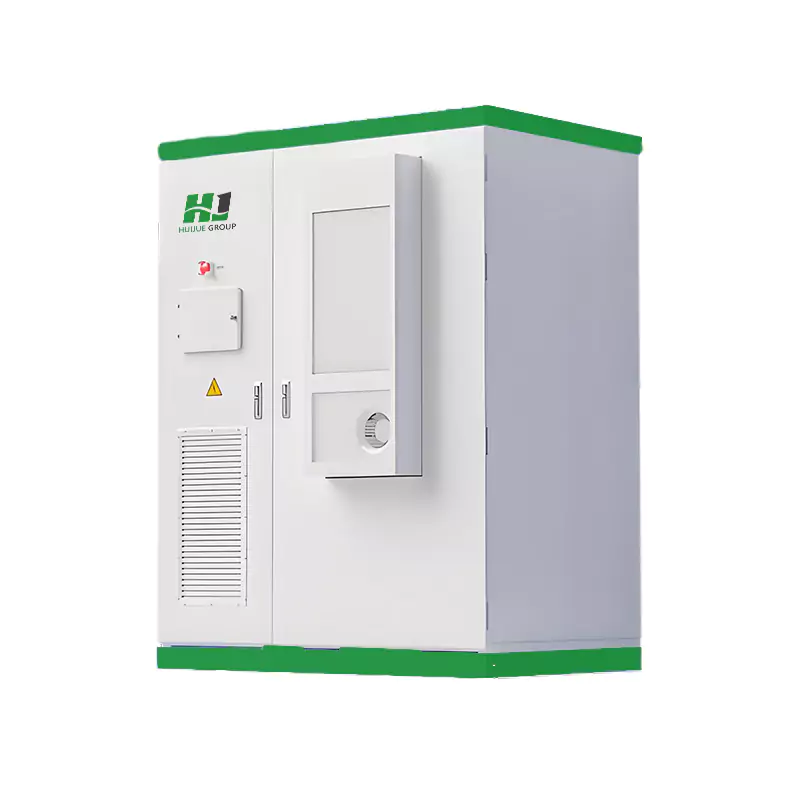

215 kWh Liquid Cooling Outdoor Energy Storage Cabinet
The 215KWh outdoor cabinet energy storage system is a liquid-cooled energy storage solution. The system adopts a high-capacity density lithium iron phosphate battery with a 1000V platform and plate exchange liquid-cooling technology, equipped with a 100kW energy storage converter, a charging/discharging multiplication rate of 0.5P.
Product Parameters
| Model | HJ-G100-215L |
| Item | Technical parameters (single system) |
| System parameters | |
| Rated Discharge Power | 100kW |
| Rated charging power | 100kW |
| Rated Energy Storage Capacity | 213kWh |
| Storage Battery Type | Lithium iron phosphate, 280Ah single unit |
| Battery Module | 1P48S |
| Single Cluster Formation | 1P240S |
| Maximum Energy Conversion Efficiency | ≥86% |
| DC Side Parameters | |
| Rated Voltage | DC768V |
| Battery voltage range | DC 600V~876V |
| Rated Power | 100kW |
| Rated Current | 140A |
| Maximum DC Power | 110kW |
| Maximum DC Current | 192A |
| AC Side Parameters | |
| Rated grid voltage/allowable grid voltage range | 400V（-20%~+15%） |
| Rated grid frequency / permissible grid frequency range | 50Hz/60 Hz (±2.5) |
| Rated power factor | -0.99~+0.99 |
| Cabinet parameters | |
| Overall Dimension(W×D×H)mm | 1300×1300×2275 |
| Weight (t) | ≤3 |
| Installation method | Cement foundation or channel steel |
| Protection grade | IP54 |
| Spraying Colour | RAL 7035 Off-white matt |
| Thermal management technology | Liquid- cooling |
Product Description
The 215KWh outdoor cabinet energy storage system is a liquid-cooled energy storage solution. The system adopts a high-capacity density lithium iron phosphate battery with a 1000V platform and plate exchange liquid-cooling technology, equipped with a 100kW energy storage converter, a charging/discharging multiplication rate of 0.5P. It has the advantages of high safety, long life, high efficiency, etc., and can be widely used in industrial and commercial fields to satisfy the user’s demand for energy storage and management.
Application scenarios
- Peak-to-valley arbitrage, grid-side frequency regulation, and standby power supply.
Product Features
- Liquid-cooling technology: It adopts an integrated liquid-cooling system, with a high-efficiency inverter compressor and intelligent speed regulation of the fan, which can adjust the cooling capacity and wind speed in real time according to the heat load to ensure that the batteries operate at a suitable temperature and prolong the life of the batteries.
- Energy Management Unit (EMU): It is responsible for real-time communication with BMS, PCS, temperature control system, fire protection system, and other equipment, collecting data and forwarding it to the energy storage cloud platform, so that users can view the data at any time through the web or mobile phone APP. At the same time, EMU, as a local control unit, can execute various operation strategies, such as peak and valley arbitrage and demand management.
- Supports multiple access modes: It supports AC0.4kV low-voltage side access, which can be flexibly integrated into different scenarios of power grid architecture to meet diversified energy access needs.
- Integration of various functions: It has the functions of peak/valley arbitrage, backflow prevention, manual connection and disconnection, etc., which can adapt to the energy management needs in different scenarios and realise the efficient use and optimal allocation of energy.
- Integrated design: Highly integrated system design, compact structure, space-saving, easy to transport and install, can be quickly put into use.
