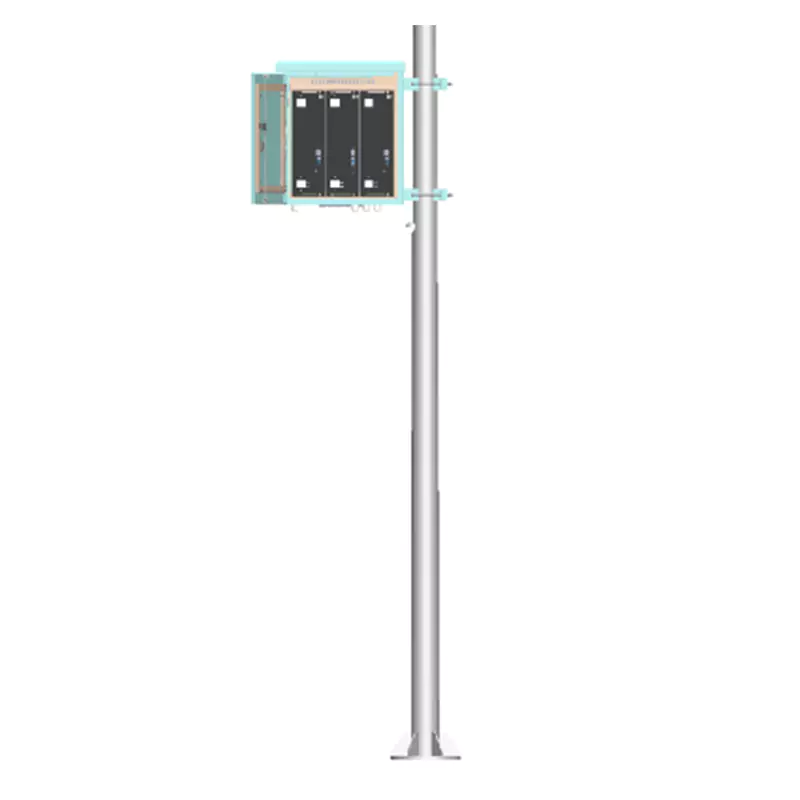

Wall-Mounted/Pole-Mounted Base Station Battery Cabinet

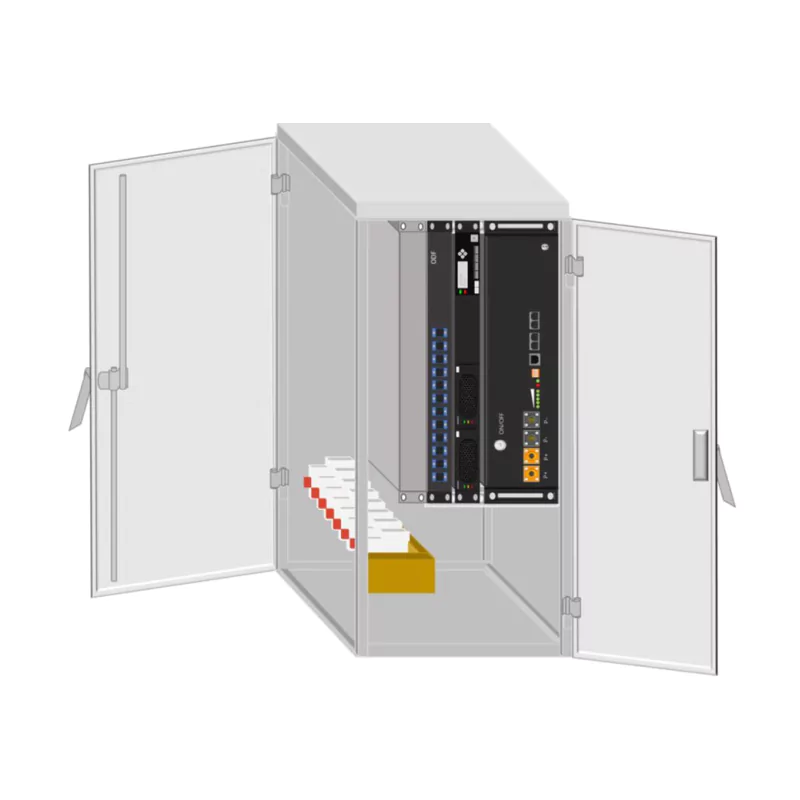

This series of products integrates battery PACK, BMS system, high-voltage box, power distribution unit, temperature control system, and fire protection system.
Product Parameters
| Model | HJ-ZB15 |
| Power | / |
| Maximum Energy Storage Capacity | 15KWh(3modules) |
| Application | Energy Storage |
| Usage Environment | Outdoor |
| Installation Method | Wall-mounted/Pole-mounted, |
| Specification Dimensions | 700mm*550mm * 400mm |
Product Description
This series of products integrates battery PACK, BMS system, high-voltage box, power distribution unit, temperature control system, and fire protection system. It is designed in a cabinet style, which is convenient for transportation. The system capacity is 15KWH – 50KWH, supports multi-machine parallel connection, and can be flexibly expanded. It has functions such as grid voltage regulation, three-phase unbalance control, and harmonic control, which can improve power quality, load tracking, standby power supply, and peak shaving and valley filling.
Application scenarios
Users, industrial and commercial enterprises, industrial and mining areas, border defense posts, field construction, emergency rescue.
Product Features
- Easy installation and maintenance: The structure is streamlined, with small space requirements and flexible layout, making it easy for installation and maintenance.
- Safety guarantee: It is equipped with multiple safety guarantees, such as built-in fire protection, temperature control, and warning systems.
- Multiple environment options: It has two types of protection, P55/IP20, for both indoor and outdoor environments, and can be applied to different indoor and outdoor environments.
- Long life: The cycle times can be as long as 6,000 times.
- High density: It has a high energy density, saving space for base stations.
