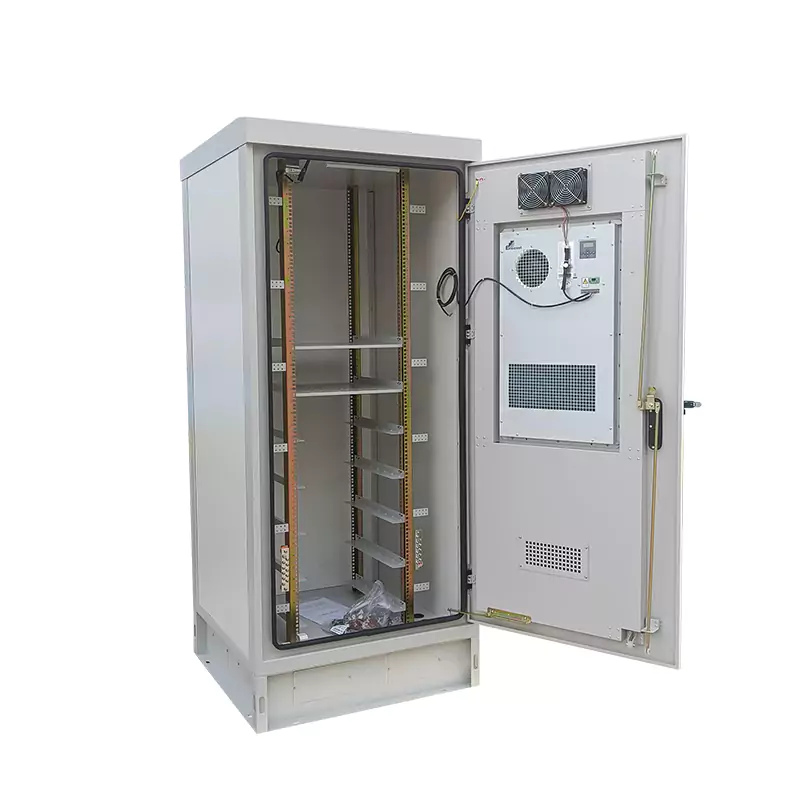

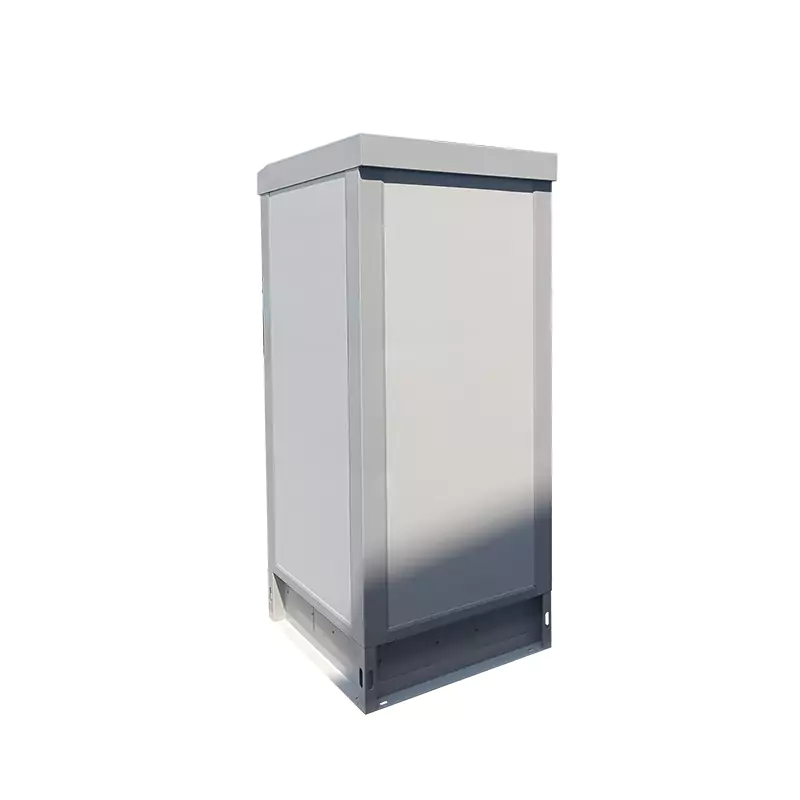

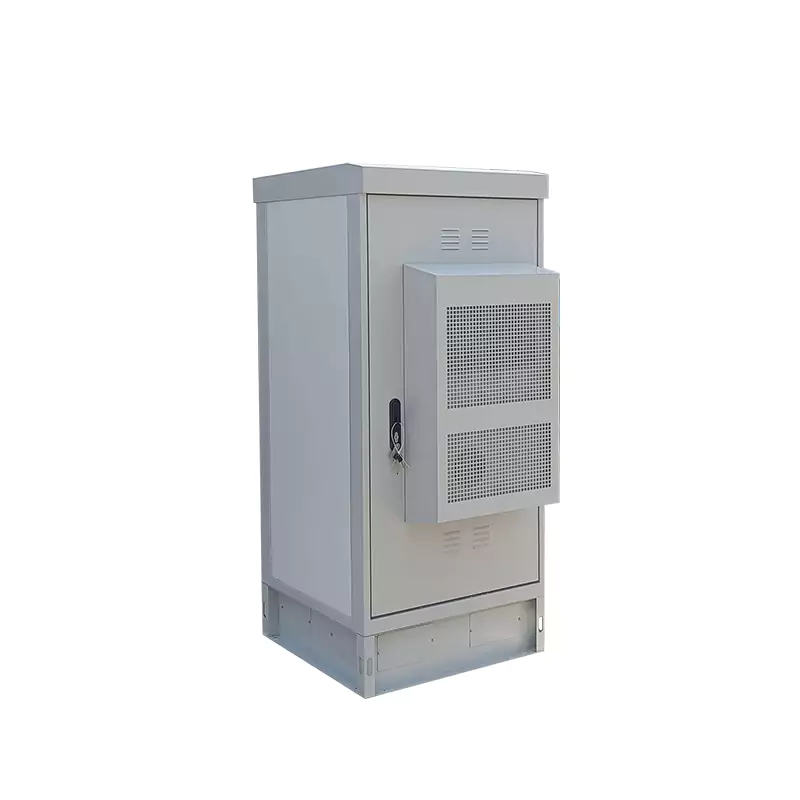

30U Outdoor Cabinet with Sandwich Panel Design
The modular outdoor integrated cabinet is an outdoor integrated cabinet constructed using a sheet metal frame and sandwich panel materials.
Product Advantages
- Modular assembly: The cabinet's overall structure can be assembled, addressing on-site transportation issues (cabinets exceeding 800 mm in depth and 800 mm in width can pass through an 800 mm-wide corridor);
- Modular design: High modularity reduces on-site assembly workload; fewer installation screws are required during on-site assembly;
Product Parameters
| Product Model | HJ-OFAM30-01 | HJ-OFVM30-01 |
| Rack Capacity | 30U，19″rack | |
| Temperature Control Equipment | AC220V 1500W air conditioner type, with emergency fan | AC220V fan type (4 per set at the top) |
| Specifications (Height x Width x Depth mm) | 1725*900*900 (200mm base), internal dimensions 1400*800*800mm | |
| Main Configuration | 45mm rock wool sandwich panel assembly structure Front door | |
| Lighting | AC220V, 5W LED light, with door access switch | |
| Shelves | Cold-rolled steel plate 1.5mm, load capacity 80KG | |
| L-shaped Brackets | Cold-rolled steel plate 1.5mm | |
| Base | 2.0mm thick | |
| Locks | Anti-theft structure, outdoor waterproof type, zinc alloy material, three-point fixed type | |
| Power Distribution Unit | AC circuit breaker: Input 32A/2P*1, Output 10A/1P*3, Surge protector 40KA*1 | |
| AC-DC Power Supply | Switching power supply 150A rectifier power supply | |
| UPS | 1~6KVA | |
| Battery System | Lithium-iron phosphate battery 100AH, DC48V | |
| Monitoring Unit | 1. Can be connected to smoke detectors, door magnets, water sensors, infrared sensors, etc., and environmental information can be viewed through the platform; standard 1U rack mounting; 2. Software can view collected data and alarms | |
| Protection Rating | Default IP55, optional IP65 | |
| Packaging Method | Carton + wooden pallet | |
Product Description
The modular outdoor integrated cabinet is an outdoor integrated cabinet constructed using a sheet metal frame and sandwich panel materials. It can integrate professional equipment, network communication equipment, system power supplies, AC/DC power distribution, monitoring systems, temperature control equipment, battery systems, and lightning protection grounding, providing an integrated cabinet that offers an outdoor working environment and safety management for base stations.
Application scenarios
Primarily used in various outdoor environments such as rooftops, street sides, mountainous areas, railway lines, and high/low-temperature environments.
Product Features
- Constructed using 50mm-thick rock wool sandwich panels, offering lightweight yet high-strength performance, corrosion resistance, strong insulation properties, and low thermal conductivity;
- Single-compartment cabinet structure, divided into equipment power zones, battery zones, and air conditioning zones, with front-opening doors;
- Outdoor cabinets feature an anti-theft design with a three-point locking system; screws are installed inside the cabinet body and are not visible from the outside, preventing self-disassembly;
- Surface treatment (optional): degreasing, acid washing, rust-proof phosphating, electrostatic powder coating; outdoor cabinets are coated with imported outdoor powder and baked, with the coating meeting the requirements of GB/T 3181-2008;
- The cabinet frame and door use an embedded structure to prevent forced entry, offering high anti-theft performance;
- The cabinet supports 19-inch (IEC 297) standard racks and accommodates various devices requiring installation space compliant with 21-inch (IEC 297) dimensions;
- Modular design with a simple structure and easy installation; the cabinet primarily consists of 19-inch upright components, side panels forming a single unit, a top panel, a bottom panel, a base, and a door frame;
- Door-mounted card-style rubber seals ensure waterproofing when the door is closed, as the seals press against the door frame. The seals are continuous without breaks, providing excellent waterproofing performance.
