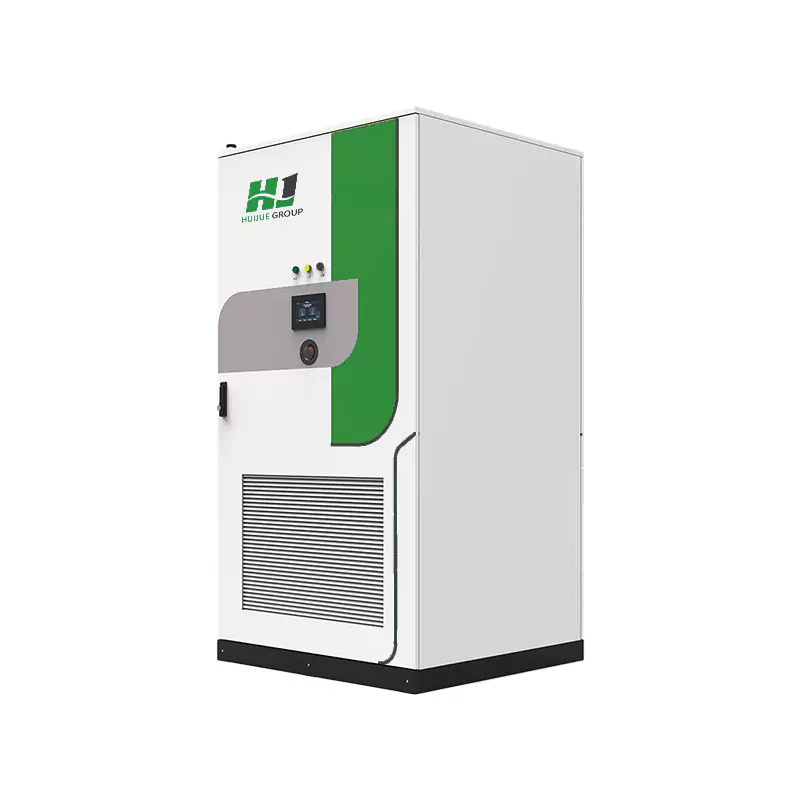

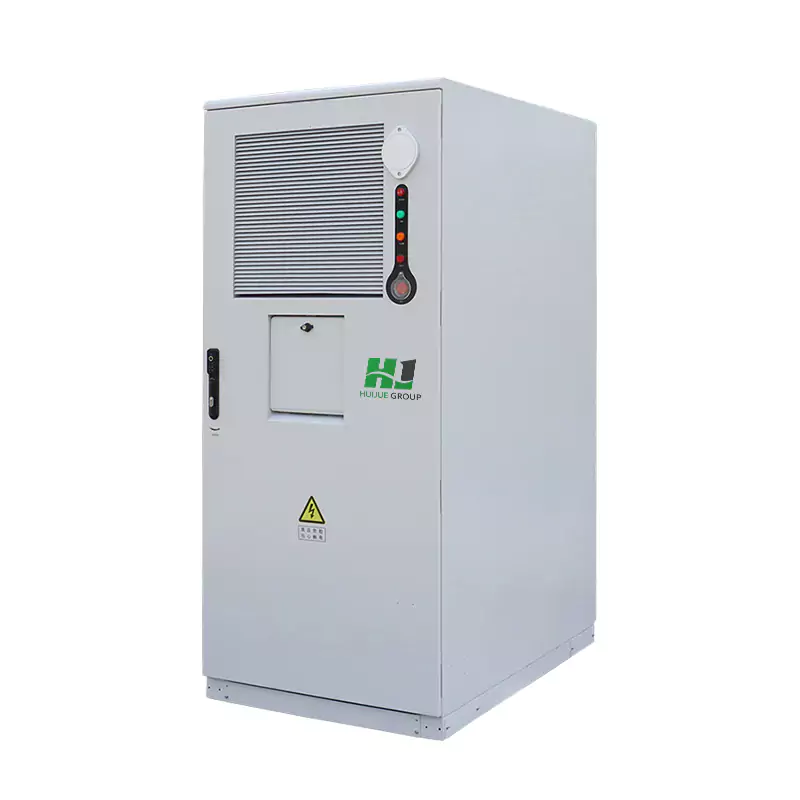

241 kWh Outdoor Energy Storage Cabinet
The 241KWh outdoor cabinet energy storage system is a high-performance energy storage device with air-cooled heat dissipation technology, which is suitable for a variety of outdoor energy storage scenarios.
Product Parameters
| Model | HJ-G100-241F |
| Cell Type | LFP-314Ah |
| Nominal Capacity | 241.15kWh/1P224S |
| Charge/discharge ratio | <0.5C |
| Nominal Voltage | 768V |
| Voltage range | 672~864V |
| Maximum Charge/Discharge Current | 157A |
| Rated Power | 120KW |
| Grid-connected voltage | 400V |
| Power factor | -1~1 |
| Rated Grid Frequency | 50Hz |
| System efficiency | ≥89% |
| Charge/discharge depth | 100%DOD |
| Working Temperature | -25~60°(Derated above 45°) |
| Humidity | ≤ 9 5 % None Condensing |
| Cooling method | Air-cooled |
| IP Rating | IP54 |
| Communication mode | Ethernet/RS485 |
| Altitude | 3 0 0 0 m (Derated above 3 0 0 0 m) |
| Dimension(W*D*H) | 1400*1300*2387mm |
| Fire Fighting System | Perfluorohexanone + Aerosol + Active Pre-Alarm |
| Weight | 3000kg |
Product Description
The 241KWh outdoor cabinet energy storage system is a high-performance energy storage device with air-cooled heat dissipation technology, which is suitable for a variety of outdoor energy storage scenarios. With powerful storage capacity, stable performance, and efficient charging and discharging efficiency, it can provide a reliable solution for energy management and power supply.
Application scenarios
Industrial energy storage, factories, mines, commercial energy storage, shopping malls, hotels.
Product Features
- High-performance battery cell: Adopting LFP-314Ah battery cell, it has good safety and long life.
- Large capacity and high power: With a nominal capacity of 241.15kWh/1P224S and a rated power of 120KW, it can provide efficient charging and discharging capabilities in a short period of time to meet a wide range of power needs.
- Wide voltage range: The voltage range is between 672~864V, which can be adapted to different power equipment and system requirements, improving its compatibility and applicability.
- Efficient heat dissipation: Adopting air-cooled heat dissipation ensures that the equipment maintains a good working temperature during high load operation, prolonging the life of the equipment and improving the operating efficiency.
- Strong adaptability: The working temperature range is from -25℃ to 60℃, which can operate normally under various harsh environmental conditions without condensation, and has a wide adaptability range.
- High safety performance: Equipped with perfluorohexanone + aerosol + active warning fire protection system, effectively improving the safety performance of the equipment and reducing the risk of fire.
