Modular Data Center Racks Cold Network Cabinets

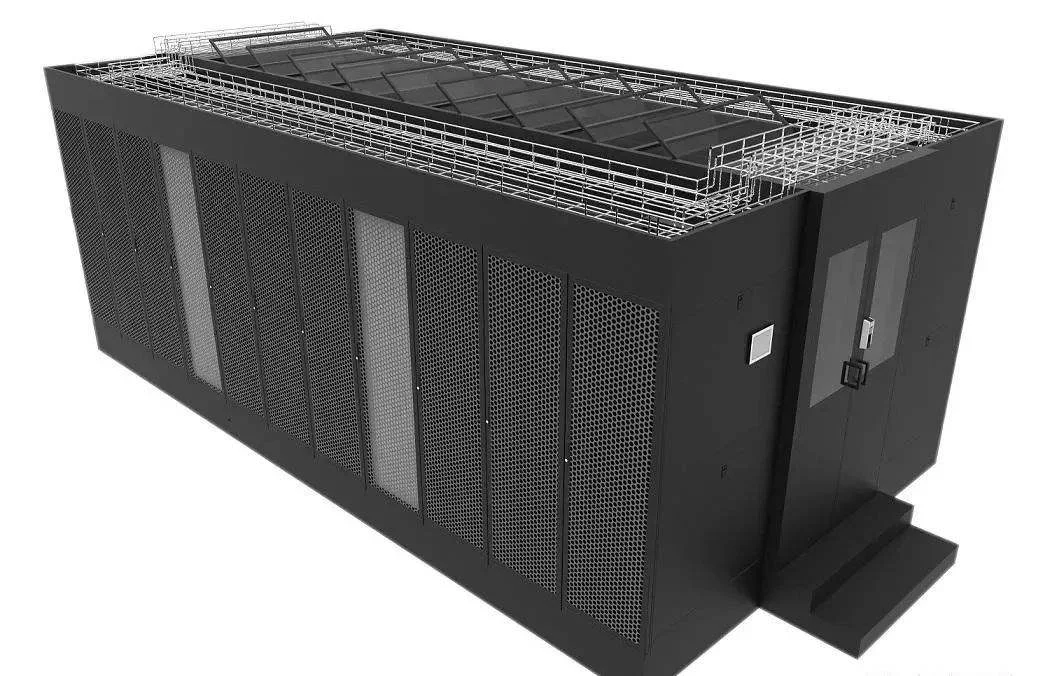

This modular data center cold aisle containment cabinet is designed for standardized server and network deployments in data center environments. Built with SPCC steel construction, it supports cold/hot aisle containment layouts and modular expansion, providing a controlled and efficient infrastructure foundation for rack-based IT equipment.
Product Advantages
- Energy-efficient containment: Cold and hot aisle containment design helps reduce energy loss and improve cooling efficiency.
- Modular scalability: Supports single-row and double-row configurations, allowing flexible expansion based on site requirements.
- High power density support: Designed for high rack power density applications in modular data center deployments.
- Standardized deployment: Suitable for rapid, repeatable deployment in modular data center scenarios.
Product Parameters
| Product Name | Modular Data Center / Cold Aisle Containment Cabinet | |
| Certification | CE / RoHS / ISO9001 | |
| Material | SPCC | |
| Protection Rating | IP20 | |
| Dimensions | Single-row sealed cold/hot aisle (L×W×H): L×2400mm×2000mm, L≤15m L×2300mm×2000mm, L≤15mDouble-row sealed cold/hot aisle (L×W×H): L×3600mm×2000mm, L≤15m L×3400mm×2000mm, L≤15m L×3600mm×2200mm, L≤15m |
|
| Single Cabinet Quantity | Single row: 2–24 / Double row: 6–48 | |
| Power Input | 380 / 400 / 415Vac, 50/60Hz, 3Ph + N + PE | |
| Single Module IT Power Consumption | Built-in UPS: 112kW / External UPS: 310kW | |
| Single Cabinet Power Density | 21kW / Rack | |
| Reliable Grade | Tier II or Tier III | |
| Altitude | 0–4000m | |
| Mounting Method | Concrete floor mounted or plinth mounted | |
| Packaging Method | Wooden package or upon customer request | |
Product Description
The modular data center cold aisle containment cabinet is designed to support standardized rack-based IT deployments with controlled airflow management. It enables the integration of server racks, power systems, and aisle containment structures into a modular layout, improving thermal efficiency and operational stability in data center environments.
Application scenarios
Suitable for modular data centers, enterprise data centers, cloud infrastructure deployments, and other server environments requiring efficient cold/hot aisle containment and scalable rack solutions.
Product Features
- Supports single-row and double-row cold/hot aisle containment configurations;
- Designed for modular data center architecture with scalable cabinet quantities;
- Compatible with high rack power density server deployments;
- Floor-mounted structure suitable for permanent data center installations;
- Enables improved airflow management and energy efficiency in server rooms.
