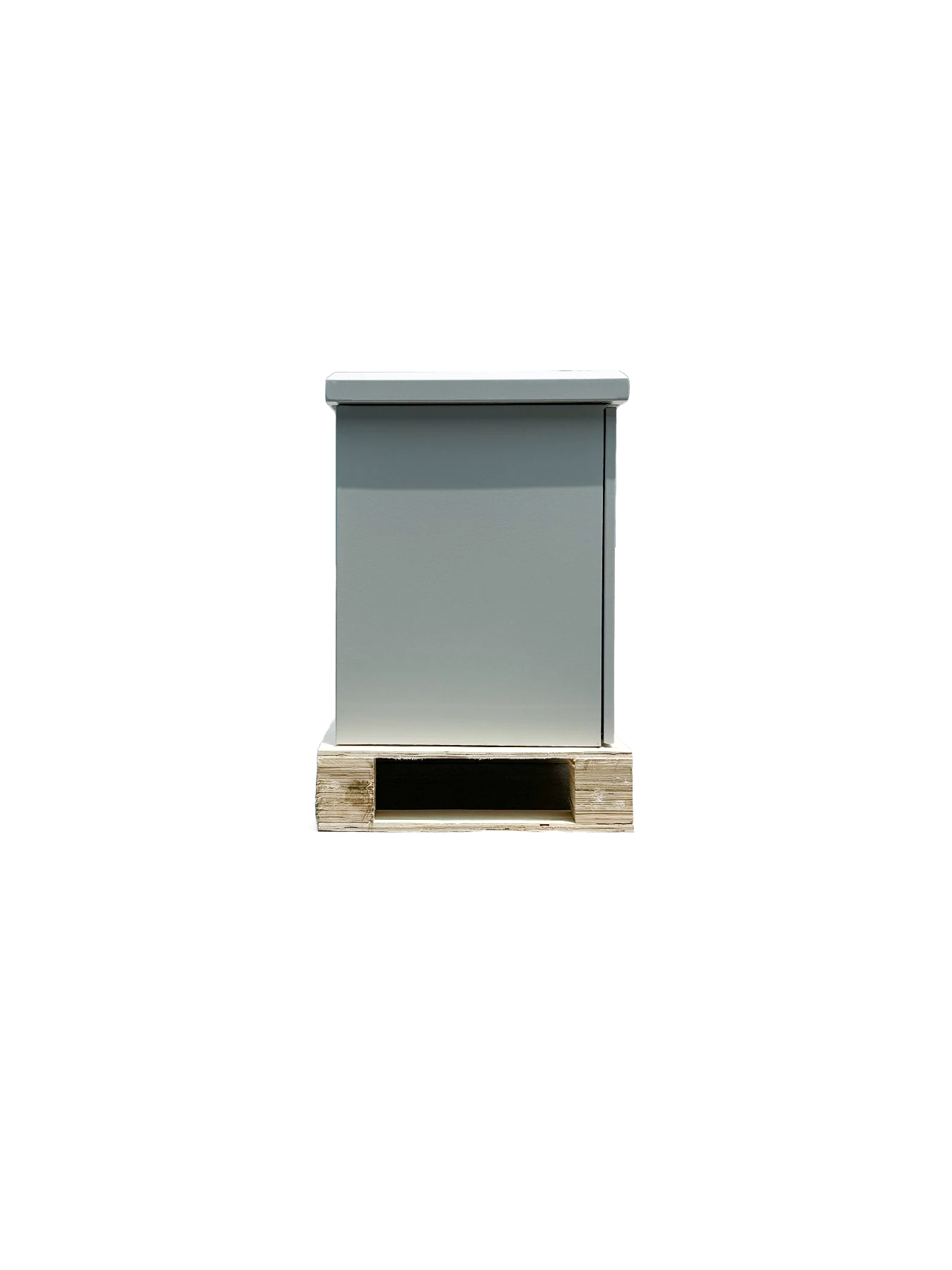

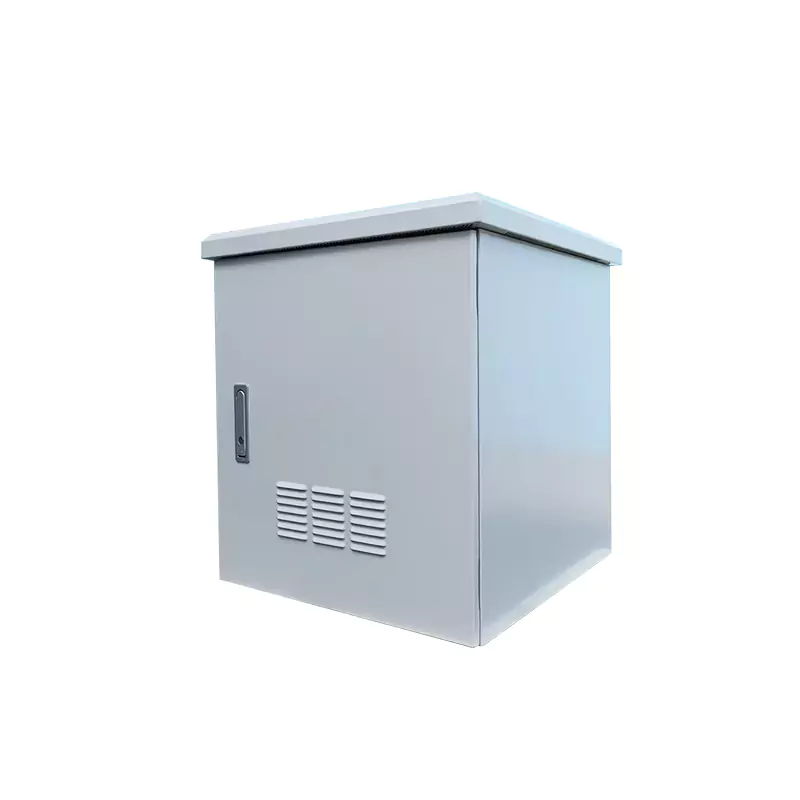

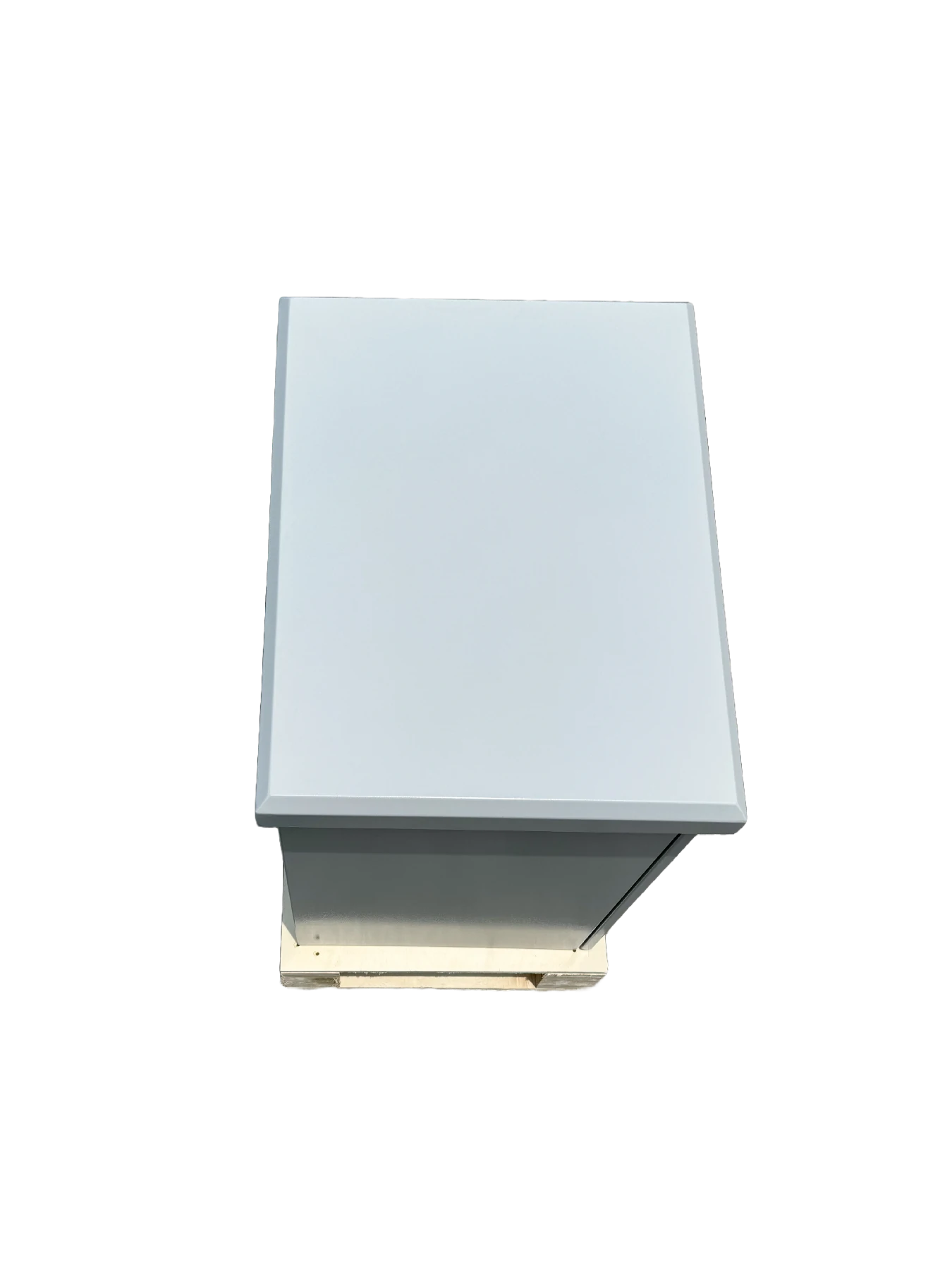

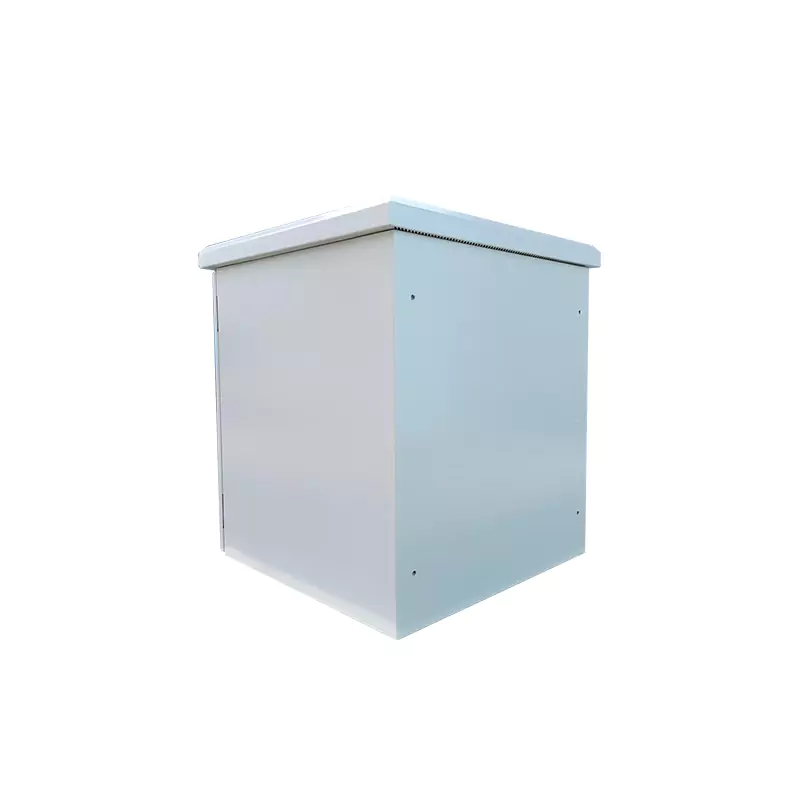

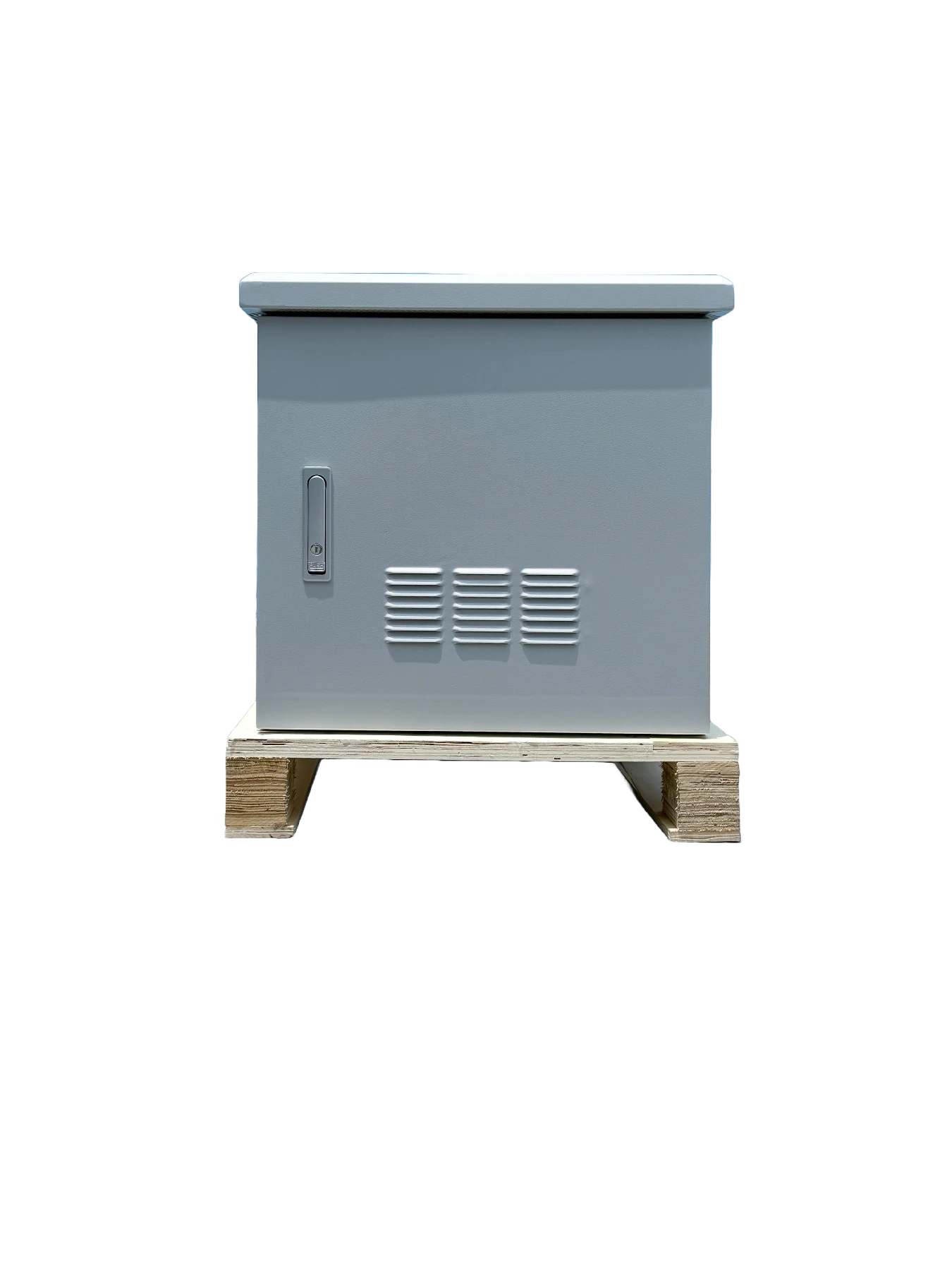

10U Outdoor fan-type cabinet
The outdoor fan cabinet is a small outdoor integrated cabinet made of high-quality metal sheet material.
Product Advantages
- Quick installation: The cabinet is shipped fully assembled. Customers only need to secure the cabinet using the bottom mounting holes and install equipment in the reserved equipment space.
- Cabinet standardization: By standardizing the cabinet, common components are made into standard products.
Product Parameters
| Product Model | HJ-OWVS10-01 | HJ-OWVS10-02 | HJ-OWVD10-01 | HJ-OWVD10-02 |
| Rack Capacity | 10U, 19″ rack | 10U, 19″ rack | ||
| Specifications (Height x Width x Depth mm) | 600mm-600mm-450mm | 600mm-600mm-600mm | 600mm-600mm-450mm | 600mm-600mm-600mm |
| Main Configuration | Single-layer structure, galvanised steel sheet 1.2 mm, front-opening door, wall-mounted, cardboard box packaging | Double-layer structure, 1.2 galvanised steel plate, front door, wall-mounted, carton packaging | ||
| Temperature Control Equipment | AC fan, dimensions 120 x 120 x 38 mm; airflow rate 90 CFM, power 19 W | AC fan, dimensions 120 x 120 x 38 mm; speed 90 CFM, power 19 W | ||
| Wall Mounting Bracket | Galvanised steel sheet 2.0 mm, length 700 mm | Galvanised sheet metal, 2.0 mm thick, 700 mm long | ||
| Support Bracket | Galvanised steel sheet 2.0 mm | Galvanised sheet 2.0 mm | ||
| Lighting | AC 220V, 5W LED light, includes door access switch | AC 220V, 5W LED light, with access control switch | ||
| Shelf | Cold-rolled steel sheet 1.2 mm, load capacity 50 kg | Cold-rolled steel plate 1.2 mm, load capacity 50 kg | ||
| L-shaped Bracket | Cold-rolled steel sheet 1.5 mm | Cold-rolled steel sheet 1.5 mm | ||
| Locks | Anti-theft structure, outdoor waterproof type, zinc alloy material, three-point fixed design | Anti-theft structure, outdoor waterproof type, zinc alloy material, three-point fixed type | ||
| Power Distribution Unit | AC circuit breaker: input 32A/2P*1, output 10A/1P*3, surge protector 40KA*1 | Communication circuit breaker: Input 32A/2P*1, Output 10A/1P*3, Surge arrester 40KA*1 | ||
| Monitoring Unit | 1. Can be connected to smoke detectors, door magnets, water sensors, infrared sensors, etc., to view environmental information through the platform; standard 1U rack mounting; 2. Software can view collected data and alarms | 1. Can be connected to smoke detectors, door magnets, water immersion sensors, infrared sensors, etc. Environmental information can be viewed through the connection platform. Standard 1U rack installation. 2. Software can view collected data and alerts. | ||
| Others | Customised according to requirements | According to custom requirements | ||
Product Description
The outdoor fan cabinet is a small outdoor integrated cabinet made of high-quality metal sheet material. It can integrate professional equipment, network communication equipment, AC/DC power distribution, monitoring systems, temperature control equipment, lightning protection, and grounding, and provide an integrated cabinet for the outdoor working environment and safety management of base stations.
Application scenarios
Primarily used in various outdoor environments such as walls, utility poles, and high/low-temperature conditions, providing outdoor operational environments and safety management for base stations.
Product Features
- The cabinet frame adopts a welded structure, ensuring high structural strength;
- Insulation material: EPS foam boards are used, featuring low thermal conductivity and high strength;
- The outdoor cabinet employs a bottom cable entry design, accommodating power supply, fiber optic cables, and other cable connections;

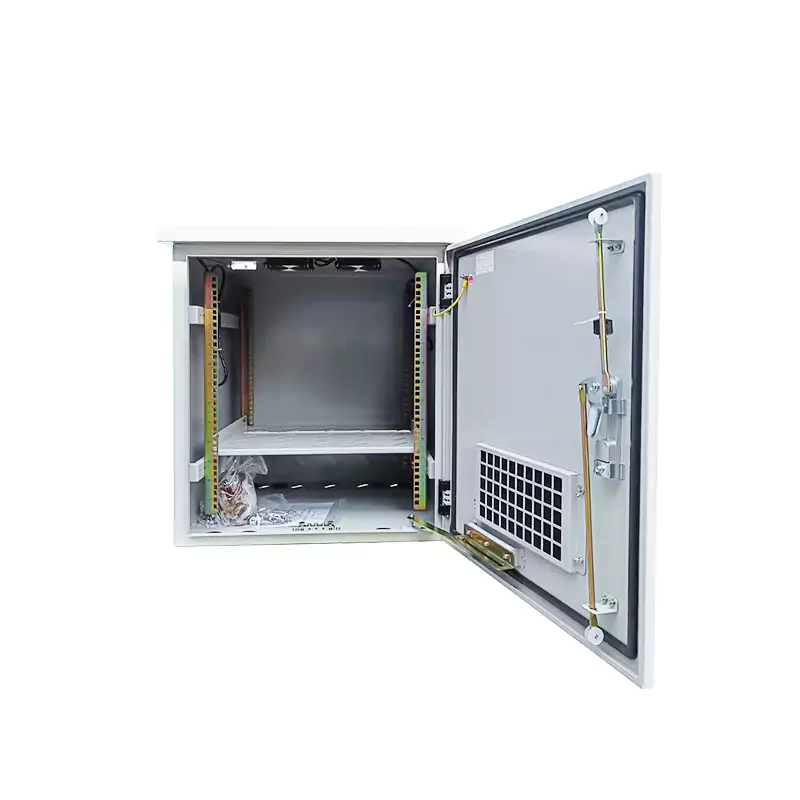

- The cabinet interior is equipped with: columns, shelves, L-shaped brackets, lighting fixtures, door magnetic sensors, and installation accessories;
- Outdoor cabinets feature an anti-theft design with three-point locking mechanisms; screws are installed inside the cabinet body and are not visible from the exterior, preventing self-disassembly;
- Surface treatment: degreasing, acid washing, rust-proof phosphating, electrostatic powder coating, with the coating meeting the requirements of GB/T 3181-2008;
- Locks should meet the Grade B requirements for anti-tampering performance specified in GA/T 73-1994. The lightning protection design for outdoor integrated equipment cabinets should comply with YD 5098-2005 ‘Design Specifications for Lightning Protection and Grounding Engineering of Telecommunication Bureaus (Stations)’;
- The cabinet supports 19-inch (IEC 297) standard racks and accommodates various devices with installation space requirements compliant with 19-inch (IEC 297) dimensions;
- The cabinet can be selected with natural ventilation or fan-type ventilation based on equipment power consumption;
- The cabinet can be equipped with electrical devices according to equipment requirements: circuit breakers, lightning arresters, sockets, switching power supplies, monitoring units, etc.;
- Cabinet exterior color and logo can be customized: color options include RAL7035 grey-white or other colors; logo can be customized;
