20U outdoor floor-standing integrated cabinet

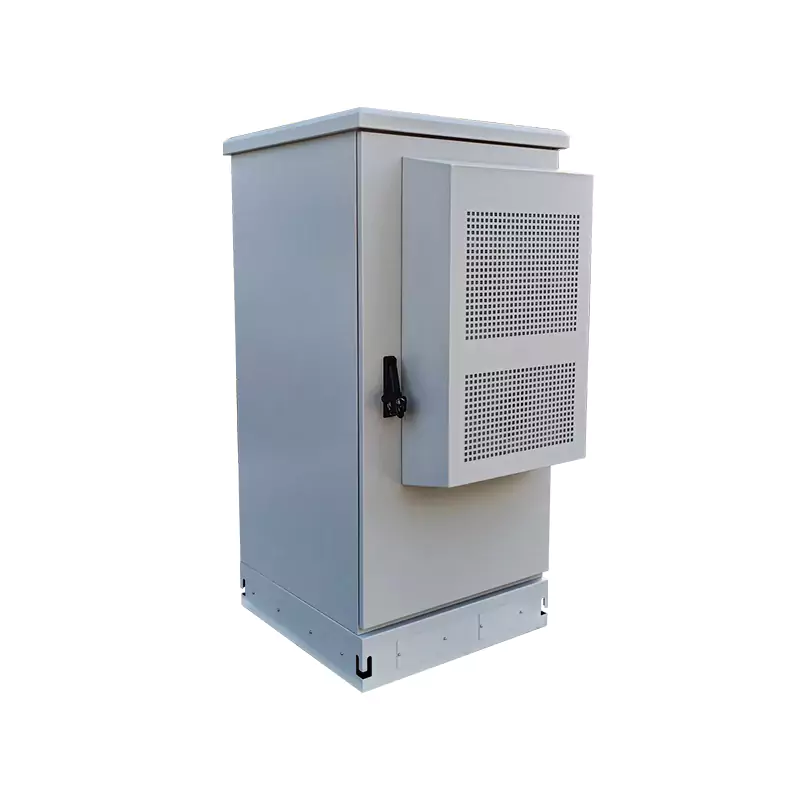

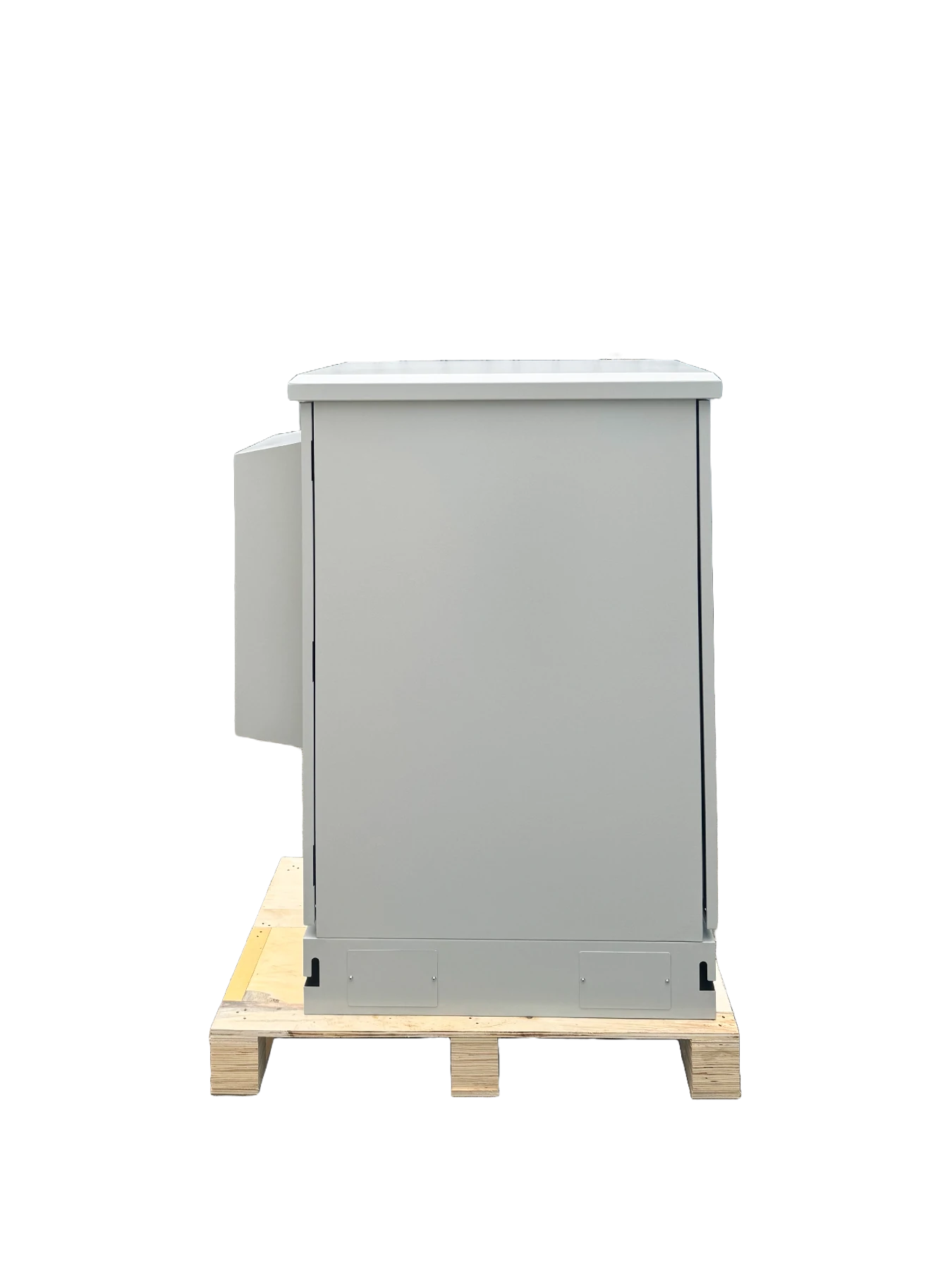

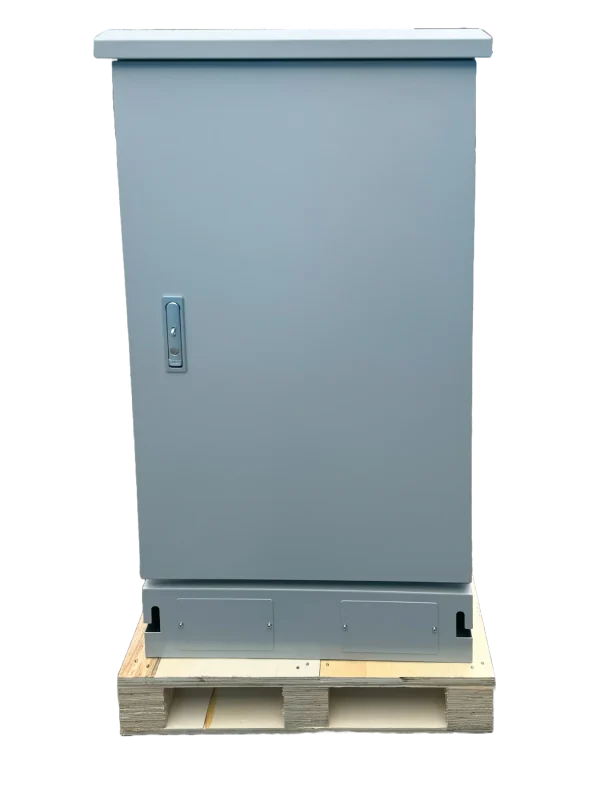

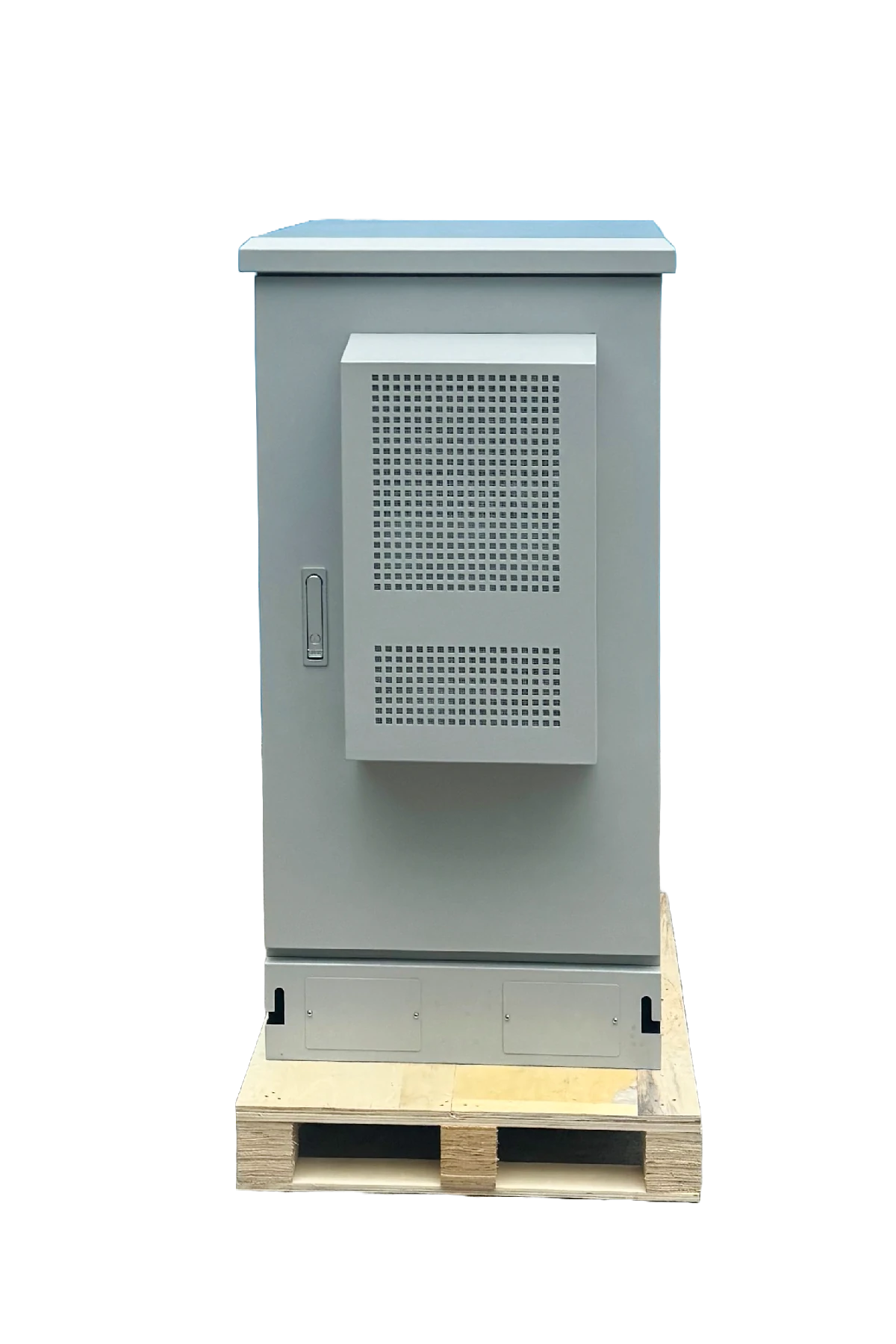

The floor-standing outdoor integrated cabinet is an outdoor integrated cabinet constructed using high-quality metal sheet materials.
Product Advantages
- Cabinet standardization: By standardizing the cabinet, common components are made into standard products. For non-standard orders, only the cabinet frame needs to be designed, and standard components can be assembled to complete the non-standard design, significantly reducing the non-standard design cycle and better meeting customer requirements for short delivery times.
Product Parameters
| Product Model | HJ-OFAD20-01 | HJ-OFAD20-02 |
| Rack Capacity | 20U，19″rack | |
| Specifications (Height x Width x Depth mm) | 1150-650-650 (100 mm base) | 1150-650-650 (100 mm base) |
| Temperature Control Equipment | AC 220 V 600 W air conditioning type | AC 220 V 600 W air conditioning type |
| Door Opening Method | Front and rear doors | Front door |
| Lighting | AC 220V, 5W LED light, with access control switch | |
| Shelves | Cold-rolled steel plate 1.2 mm, load capacity 50 kg | |
| L-shaped Brackets | Cold-rolled steel sheet 1.5 mm | |
| Base | 1.5 mm thick | |
| Locks | Anti-theft structure, outdoor waterproof type, zinc alloy material, three-point fixed type | |
| Power Distribution Unit | Communication circuit breaker: Input 32A/2P*1, Output 10A/1P*3, Surge arrester 40KA*1 | |
| Packaging Method | Cardboard box + wooden pallet | |
Product Description
The floor-standing outdoor integrated cabinet is an outdoor integrated cabinet constructed using high-quality metal sheet materials. It integrates professional equipment, network communication devices, system power supplies, AC/DC power distribution, monitoring systems, temperature control equipment, battery systems, and lightning protection grounding, providing an integrated cabinet that offers an outdoor working environment and safety management for base stations.
Application scenarios
Primarily used in various outdoor environments such as rooftops, street sides, mountainous areas, railway lines, and high/low-temperature environments.
Product Features
- The cabinet frame adopts a welded structure, ensuring high structural strength;
- Insulation material: EPS foam boards are used, featuring low thermal conductivity and high strength;
- The outdoor cabinet employs a bottom cable entry design, accommodating power supply, fiber optic cables, and other cable connections;
- The cabinet interior is equipped with: columns, shelves, L-shaped brackets, lighting fixtures, door magnetic sensors, and installation accessories;
- The outdoor cabinet features an anti-theft design with a three-point locking mechanism; screws are installed inside the cabinet body and are not visible from the exterior, preventing self-disassembly;
- Surface treatment: degreasing, acid washing, rust-proof phosphating, electrostatic powder coating, with the coating meeting the requirements of GB/T 3181-2008;
- Locks should meet the Grade B requirements for anti-tampering performance specified in GA/T 73-1994; • The lightning protection design for outdoor integrated equipment cabinets should comply with YD 5098-2005;
- ‘Design Specifications for Lightning Protection and Grounding Engineering of Telecommunication Bureaus (Stations)’;
- The cabinet supports 19-inch (IEC 297) standard racks and accommodates various devices that meet the 19-inch (IEC 297) dimensional installation space requirements;
- Cabinet floor-mounted installation;
- The cabinet is equipped with corresponding ventilation and cooling equipment (fans or air conditioners) based on the power consumption of the equipment;
- The cabinet can be equipped with electrical equipment according to equipment requirements: circuit breakers, lightning arresters, sockets, switching power supplies, batteries, UPS, monitoring units, etc.;
- Cabinet exterior color and logo can be selected according to requirements: color can be RAL7035 grey-white or other colors; logo can be customized;
