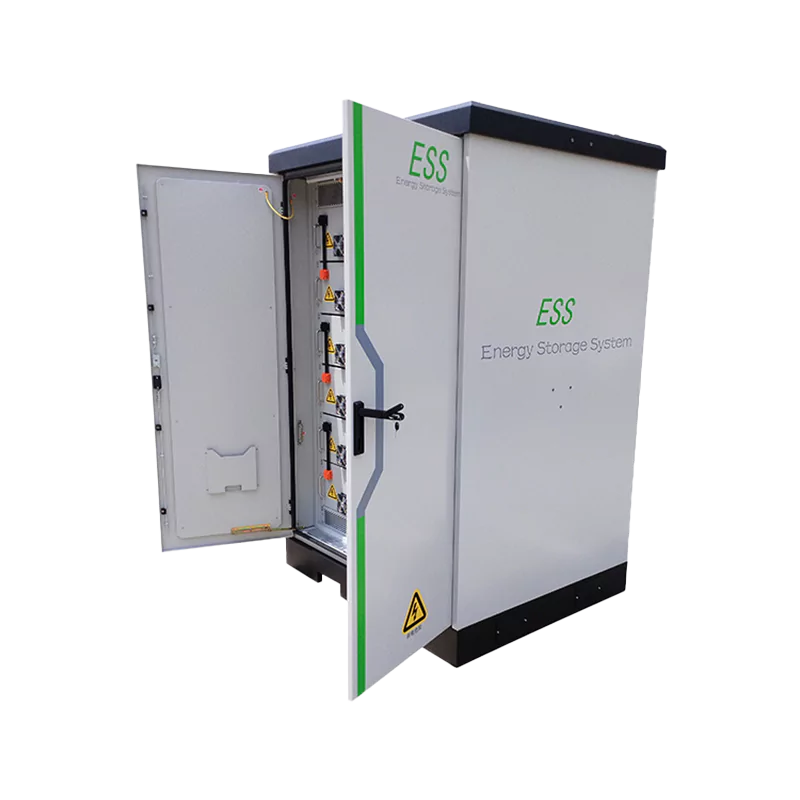

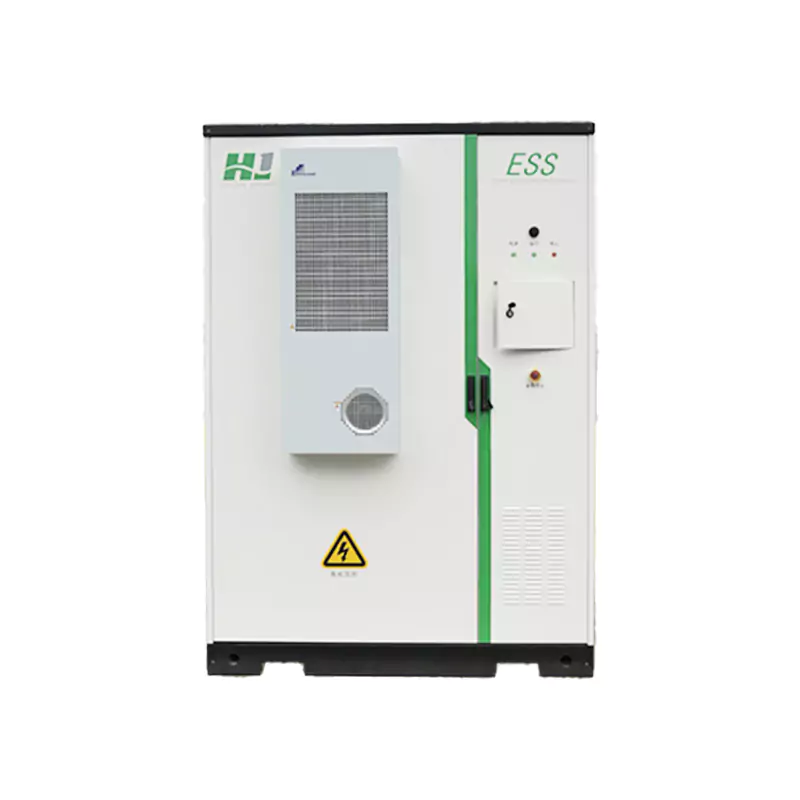

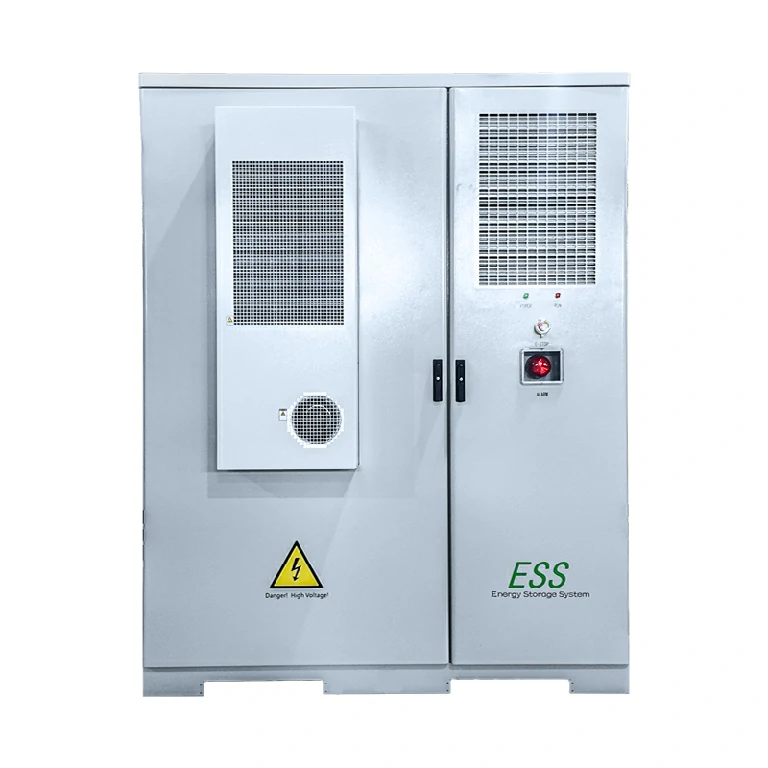

215 kWh Outdoor Energy Storage Cabinet
The 215 kWh Outdoor Energy Storage Cabinet is designed for outdoor industrial as well as commercial applications.
Product Parameters
| HJ-G100-215F (100KW/215KWh) | |||
| DC parameters | AC parameters | ||
| Battery Type | lithium iron phosphate | AC side rated power | 100KW |
| Cell Capacity | 3.2V/280Ah | Maximum power on AC side | 110KW |
| System Battery Configuration | 1P240S | Total harmonic distortion rate of cable | <3% at rated power |
| Battery Rated Capacity | 215 KWh | Rated voltage of AC side | 380V AC |
| Battery voltage range | DC636-876V | AC access method | 3P+N+PE |
| Charge/discharge ratio | 0.5C | Rated grid frequency | 50/60Hz |
| Depth of discharge | 80% | Power factor range | 0.98 |
| Battery cooling method | air cooling | off-grid operation | be in favor of |
| system parameter | |||
| sizes | 1600*1280*2200mm(reference) | Temperature control method | Industrial-grade temperature-controlled air conditioning |
| protection class | IP55 | Firefighting program | Aerosol, perfluorohexanone |
| System Communication Protocol | Standard: Modbus | communication interface | RS485, RJ45 |
Product Description
The 215 kWh Outdoor Energy Storage Cabinet is designed for outdoor industrial as well as commercial applications. With a power output of 100KW and an energy storage capacity of 215KWh, the system provides companies with an efficient energy management solution that helps optimize energy consumption, increase the efficiency of renewable energy use, and ensure a stable power supply.
Application scenarios
- Energy storage solutions for medium or large commercial and industrial installations of
- Better suited to provide backup power for hospitals, data centers, manufacturing plants, etc.
- Peak curtailment and load shifting in energy-intensive industries to reduce operating costs
Product Features
- Supports multiple operation modes: supports both grid-connected and off-grid operation modes
- Good compatibility: compatible with photovoltaic systems for hybrid energy solutions
- Highly integrated system: integrated intelligent energy management system, supporting real-time monitoring and control
