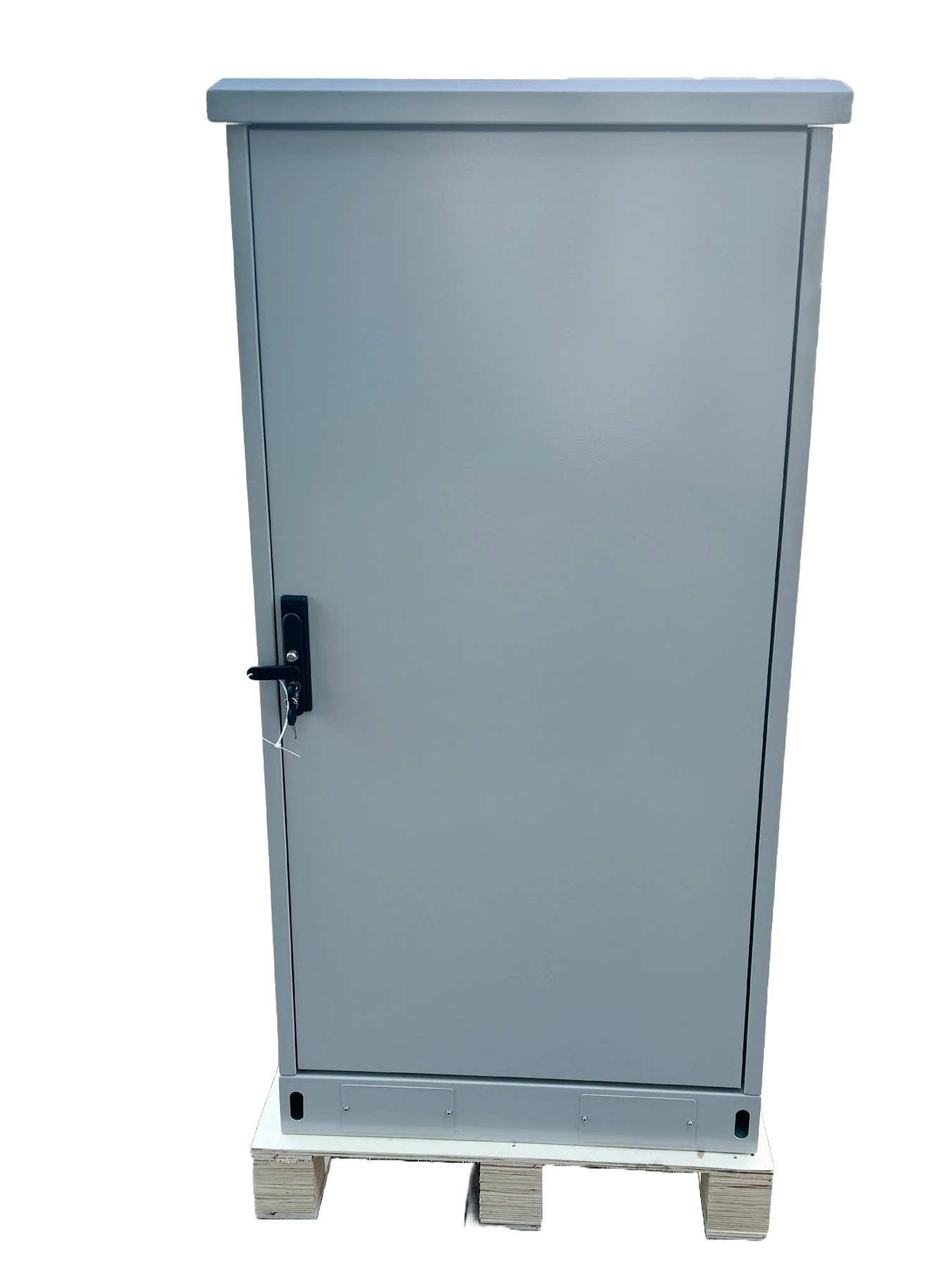

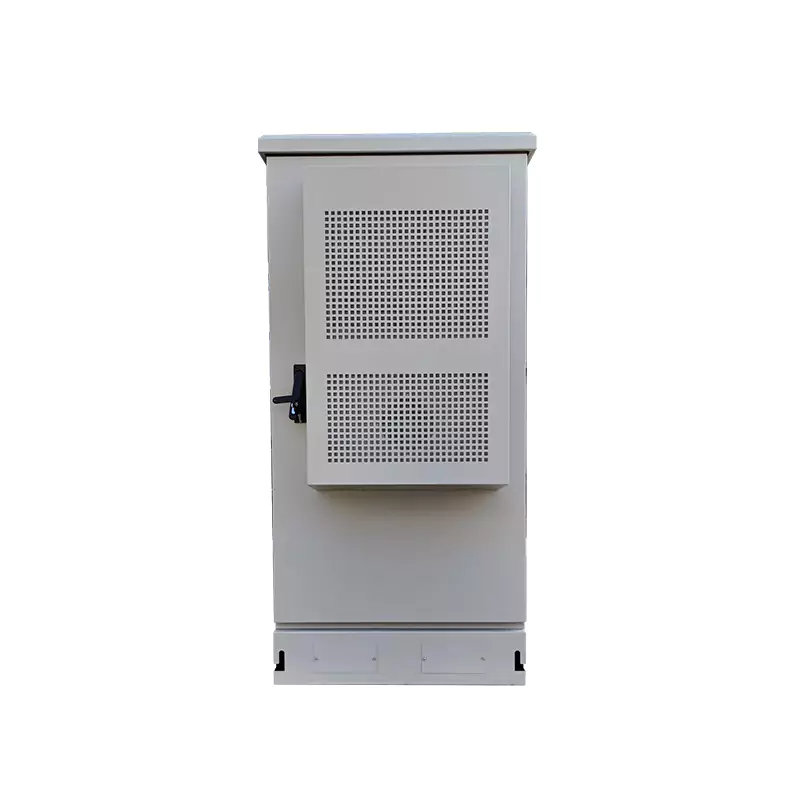

27U outdoor floor-standing integrated cabinet
The floor-standing outdoor integrated cabinet is an outdoor integrated cabinet constructed using high-quality metal sheet materials.
Product Advantages
- Quick installation: The cabinet is shipped fully assembled. Customers only need to secure the cabinet using the bottom mounting holes and install equipment in the reserved equipment space.
Product Parameters
| Product Model | HJ-OFVD27-01 | HJ-OFVD27-02 |
| Rack Capacity | 27U，19″rack | |
| Temperature Control Equipment | AC220V fan type (2 per set at the top) | AC220V fan type (2 per set at the top) |
| Specifications (Height x Width x Depth mm) | 1500-650-650 (100mm base) | 1500-650-650 (100mm base) |
| Main Configuration | Double-layer 20 mm EPS structure, front and rear doors | Double-layer 20 mm EPS structure, front door |
| Lighting | AC 220V, 5W LED light, with access control switch | |
| Shelves | Cold-rolled steel plate 1.2mm, load capacity 50KG | |
| L-shaped Brackets | Cold-rolled steel plate 1.5mm thick | |
| Base | 1.5mm thick | |
| Locks | Anti-theft structure, outdoor waterproof type, zinc alloy material, three-point fixed design | |
| Power Distribution Unit | AC circuit breaker: Input 32A/2P*1, Output 10A/1P*3, Surge protector 40KA*1 | |
| Packaging Method | Carton + wooden pallet | |
Product Description
The floor-standing outdoor integrated cabinet is an outdoor integrated cabinet constructed using high-quality metal sheet materials. It integrates professional equipment, network communication devices, system power supplies, AC/DC power distribution, monitoring systems, temperature control equipment, battery systems, and lightning protection grounding, providing an integrated cabinet that offers an outdoor working environment and safety management for base stations.
Application scenarios
Primarily used in various outdoor environments such as rooftops, street sides, mountainous areas, railway lines, and high/low-temperature environments.
Product Features
- The cabinet frame adopts a welded structure, ensuring high structural strength;
- Insulation material: EPS foam boards are used, featuring low thermal conductivity and high strength;
- The outdoor cabinet employs a bottom cable entry design, accommodating power supply, fiber optic cables, and other cable connections;
- The cabinet interior is equipped with: columns, shelves, L-shaped brackets, lighting fixtures, door magnetic sensors, and installation accessories;
- The outdoor cabinet features an anti-theft design with a three-point locking mechanism; screws are installed inside the cabinet body and are not visible from the exterior, preventing self-disassembly;
- Surface treatment: degreasing, acid washing, rust-proof phosphating, electrostatic powder coating, with the coating meeting the requirements of GB/T 3181-2008;
- Locks should meet the Grade B requirements for anti-tampering performance specified in GA/T 73-1994; • The lightning protection design for outdoor integrated equipment cabinets should comply with YD 5098-2005;
- ‘Design Specifications for Lightning Protection and Grounding Engineering of Telecommunication Bureaus (Stations)’;
- The cabinet supports 19-inch (IEC 297) standard racks and accommodates various devices that meet the 19-inch (IEC 297) dimensional installation space requirements;
- Cabinet floor-mounted installation;
- The cabinet is equipped with corresponding ventilation and cooling equipment (fans or air conditioners) based on the power consumption of the equipment;
- The cabinet can be equipped with electrical equipment according to equipment requirements: circuit breakers, lightning arresters, sockets, switching power supplies, batteries, UPS, monitoring units, etc.;
- Cabinet exterior color and logo can be selected according to requirements: color can be RAL7035 grey-white or other colors; logo can be customized;
