Solution

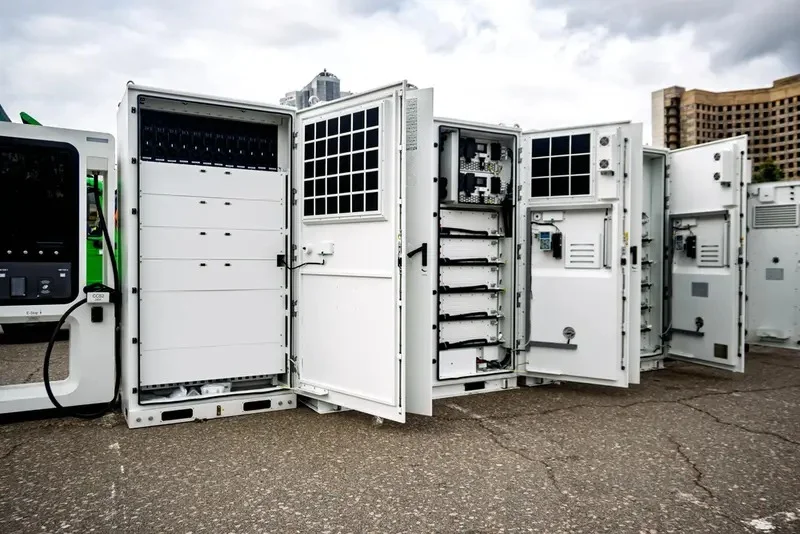

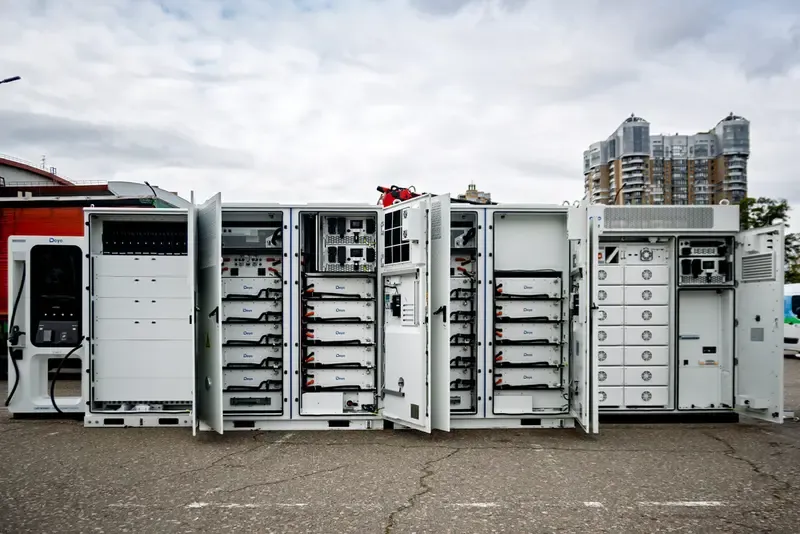

Commercial & Industrial Outdoor Energy Storage

This is an outdoor energy storage device that uses a high density integrated design philosophy, which is specifically designed for industrial and commercial applications. This device uses high-performance LFP 314Ah cells, an intelligent air cooling thermal management system, and a multi-level fire suppression system, all integrated into a single device designed for deployment outdoors, rated at IP54. This device is designed to be used as a reliable energy buffer, which optimizes power consumption. This device is pre-integrated, which means it is an all-in-one device, thereby significantly reducing commissioning times and eliminating complex wiring needs. This device uses an intelligent air cooling thermal management system, which means it has high efficiency, achieving a round trip efficiency of ≥89%. This device has independent thermal management, which means that it is always working at optimal temperatures, thereby preventing energy degradation. This device has standardized Ethernet and RS485 communication protocols, which means it can be easily integrated into existing EMS systems. This device is reliable, as it is designed for harsh conditions, rated at IP54, and has an operating temperature range of -25°C to 60°C.

Commercial & Industrial Outdoor Energy Storage

FAQ

What is the Outdoor Energy Storage Cabinet?

The Outdoor Energy Storage Cabinet is a high-capacity, all-in-one energy storage solution that integrates LFP battery strings, a 120KW power conversion system, and intelligent cooling into a weatherproof enclosure. It is designed to provide stable power for factories, mines, and commercial complexes.

What are the primary safety features of this system?

Safety is prioritized through a triple-layered fire fighting system consisting of Perfluorohexanone, aerosol suppressants, and an active pre-alarm sensor. Combined with the inherently stable LFP (Lithium Iron Phosphate) chemistry, it offers maximum protection against thermal runaway.

How does the air-cooling system benefit the battery life?

The integrated air-cooling thermal management maintains a consistent internal temperature even during high-load 0.5C charging/discharging. By preventing heat accumulation, it ensures the battery cells stay within their ideal working range, significantly prolonging the equipment's service life.

Can this system operate in extreme weather conditions?

Yes. The unit is rated IP54 for dust and water resistance and is engineered to operate in temperatures ranging from -25°C to 60°C. It can also function at altitudes up to 3,000 meters, making it adaptable to various geographical locations from coastal areas to high-altitude regions.

What are the main applications for this system?

This system is ideal for industrial energy storage, peak shaving and valley filling to reduce electricity costs, demand charge management, and providing emergency backup power for critical facilities like shopping malls, hotels, and data centers.
